| Brand Name : | QDELITE |
| Model Number : | coal trailer |
| Certification : | ISO CCC |
| Price : | USD 25000-30000 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100 PCS |
| Delivery Time : | 30 DAYS |

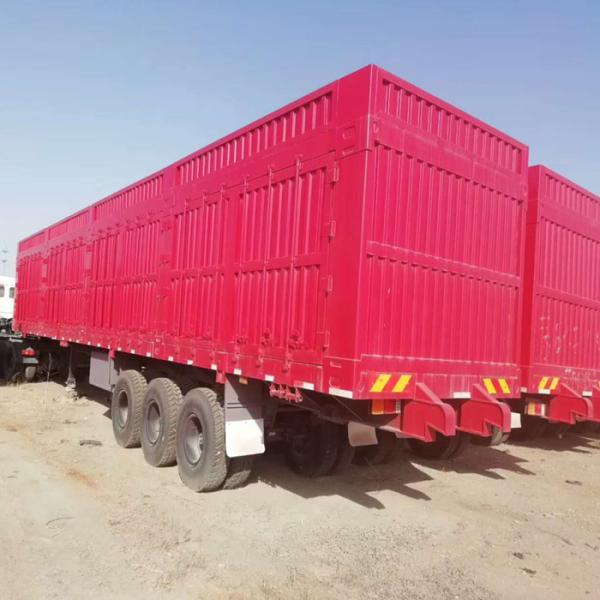

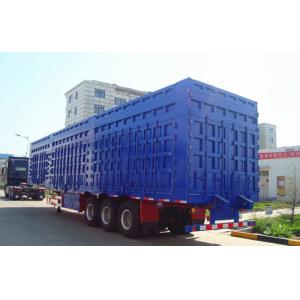

100TON COAL CARRYING SEMI TRAILER
| Weight | 10T |
| Load capacity | 100T |
| Dimension(L*W*H)mm | 15500*2550*3500mm |
| Cargo box inner size(L*W*H)(mm) | 15400*2350*2000mm |
| Beam | Material: Q345 B Type: straight beam; Height: 480mm; Upper plate: 20mm；Down plate: 20mm; Middle plate: 14mm |
| Side beam | 20#C type; Q235, |
| Cargo box side plate | 1.5mm, double layer |
| Cargo box front plate | 12#, Q235 |
| Cargo box bottom | 4 mm diamond plate |
| King pin | 90# |
| Axle | 3 axles, 20ton/axle |
| Tires | 12pcs 12.00R20 |
| Rim | 20*8.5-14, 12 units |
| Support legs | 28ton |
| Suspension | Spring suspension |
| Springs | Size: 90mm*16mm; Quantity: 10+10+10 |
| Brake system | Dual brake system 6 chambers, T30/30*4 + T30*2 Air cylinder 40L*2 No ABS |
| Electric system | 24V LED lights; 7 wires Tail lights, steering lights, brake lights, side lights, reflective strips |
| Tool box | 1 pc |
| Spare tire carrier | 1 pc |
| Color | Any colors available |
| Delivery time | 30 days |
